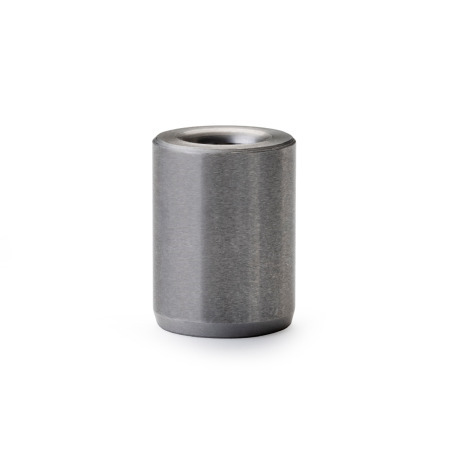

DIN9845 Guide Bushes, Headless, Punch Guide Bushings, Steel

CloseNextPrevious



CloseNextPrevious

DIN9845 Punch Guide Bushes, Steel
Type C



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type C - Without collar

CAD Viewer Technical Data

Product Description

DIN9845 Guide Bushes, Headless, Punch Guide Bushings, Steel

Guide bushings DIN 9845 are characterized by the tight dimensional and positional tolerances together with a hardened and finely machined surface. As a result, they are suitable for universal use in many applications.

Bores with tolerance H7 are recommended to accommodate the bushings. In conjunction with the outer diameter of the guide bushing tolerated to n6, this results in a preferred transition fit.

Specification

  • Steel, ST, hardened (HRC 62 +2), fit surfaces d1 / d2 ground

    • On Request

  • Other bores d1

    • Related Series
